IDEAL Automatic Circuit Breaker Finder, Model 61-535
Description

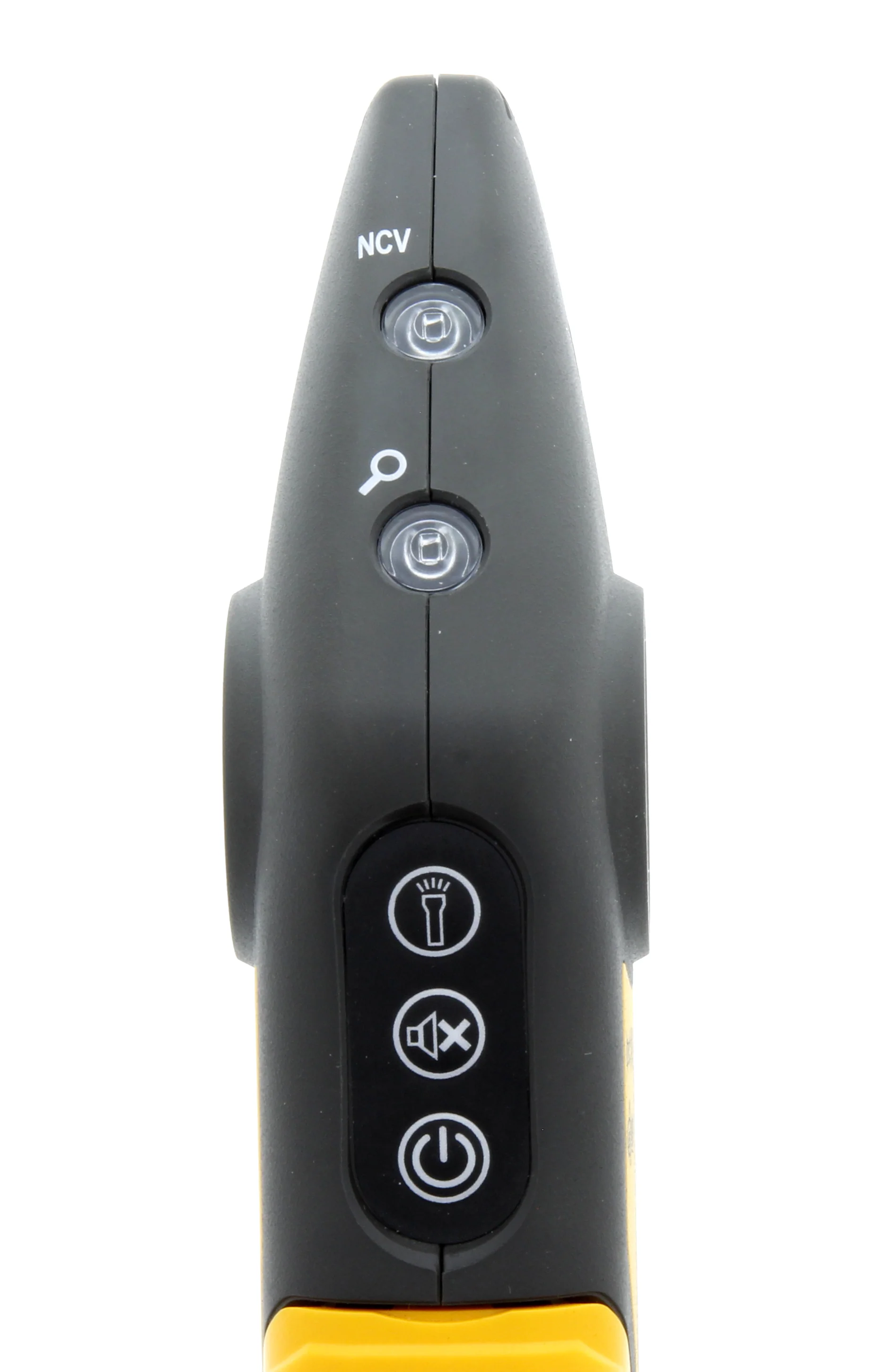

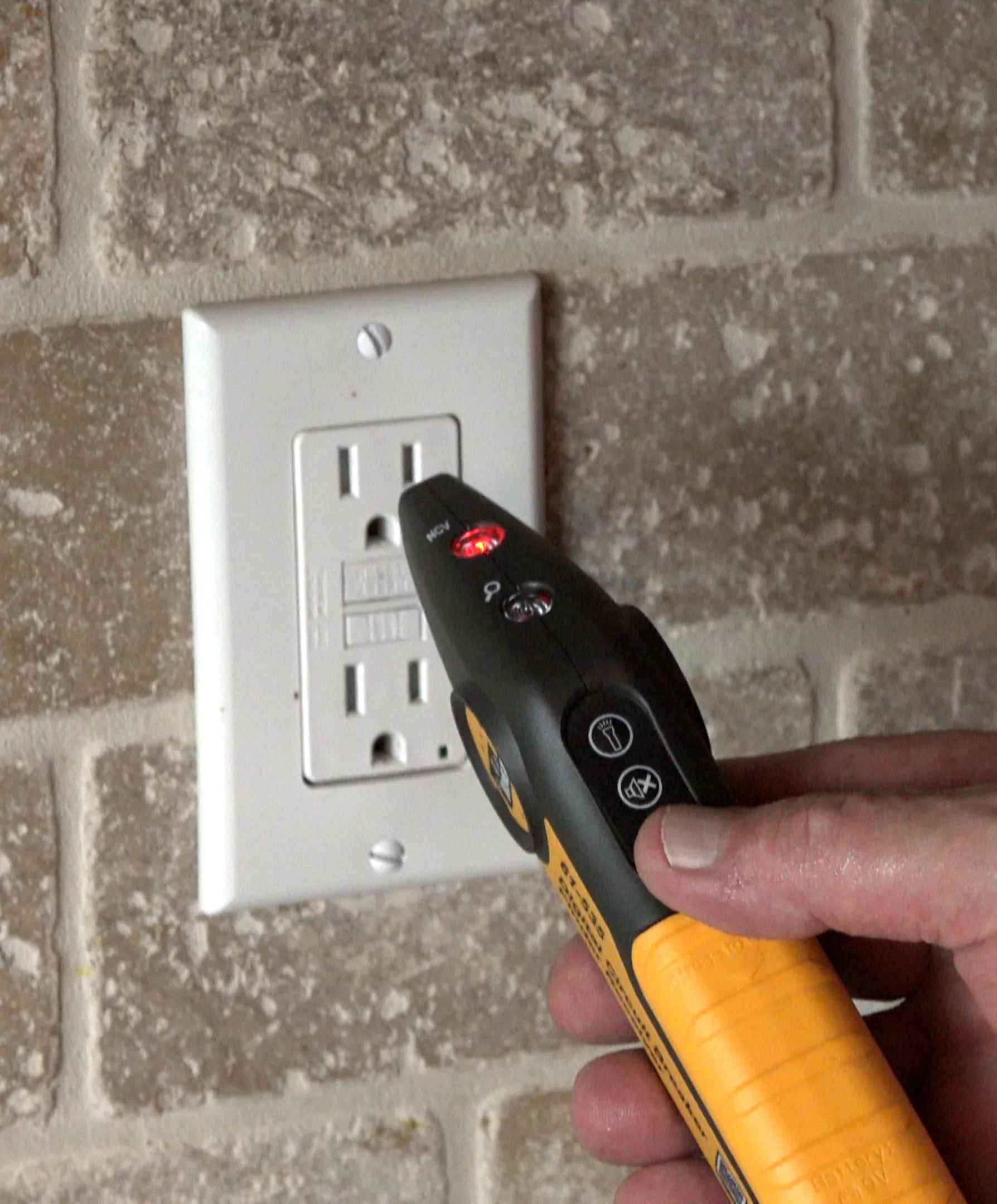

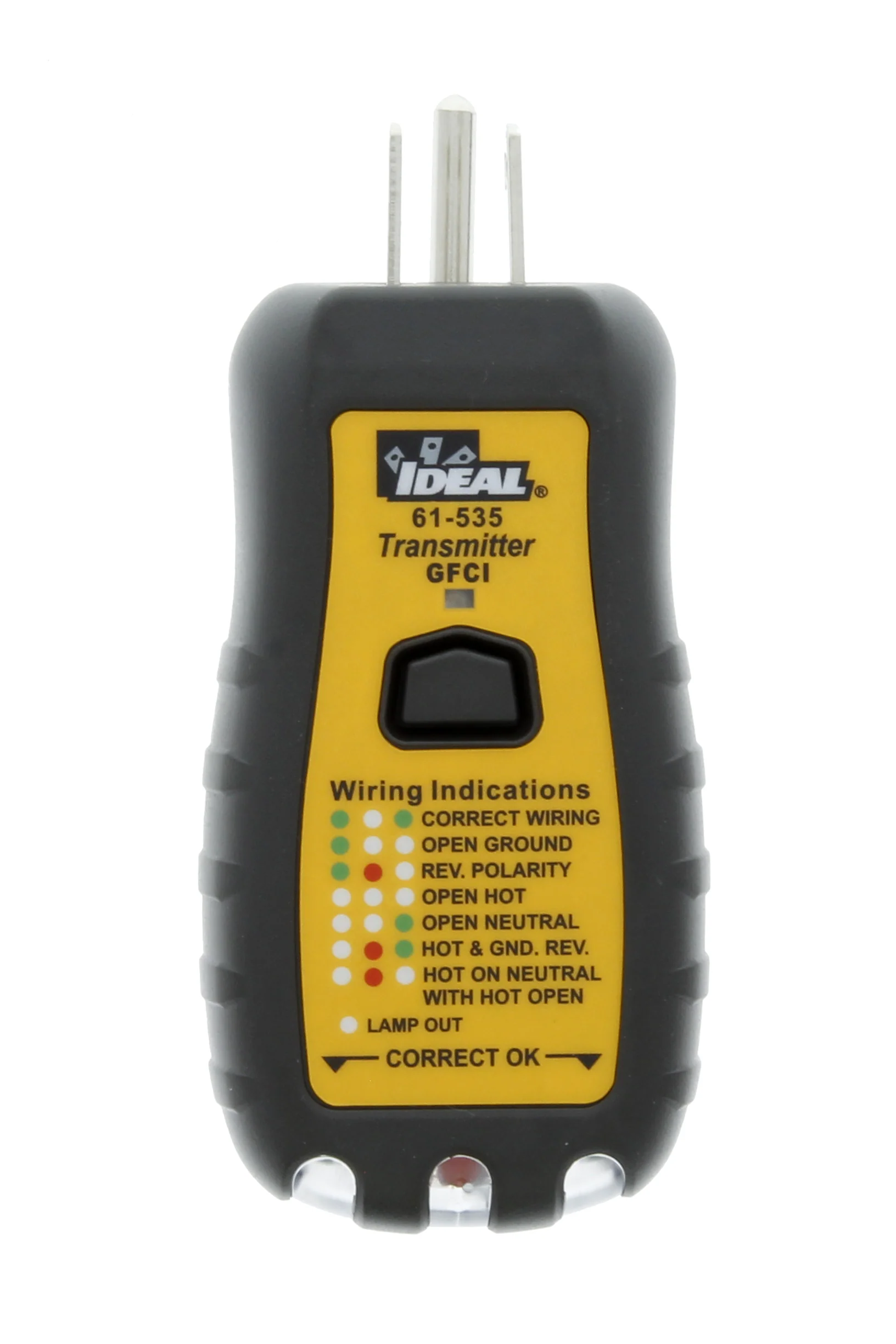

The IDEAL 61-535 is a 120V AC Circuit Breaker Finder that automatically identifies a circuit breaker/fuse protecting a live branch circuit. It consists of a transmitter and a receiver. The Transmitter sends a signal over the conductors when connected to an energized circuit. It also identifies the presence of power and indicates corrector/incorrect wiring conditions via illuminated Green and Red LED’s and contains a GFCI Trip Tester. The receiver reads the transmitter’s signal and identifies the breaker/fuse energizing the circuit by illuminating a flashing green LED and emitting beeps once it determines the breaker/fuse with the strongest signal. The receiver also senses the presence of AC voltage (60 - 600 V AC) via and non-contact voltage (NCV) sensor in the tip. The receiver indicates the presence of AC voltage by illuminating a red flashing LED and emitting a beeping sound. The audible tone for both the breaker finding mode and the NCV mode can be muted via a button for working in noise sensitive areas. The receiver also includes a work light that can be operated independently for work in poorly lit conditions.
Technical Information
Color: Yellow
CSA Listing: C22.2 No. 160
Audible Indicator: Yes
Auto Power Off: Yes

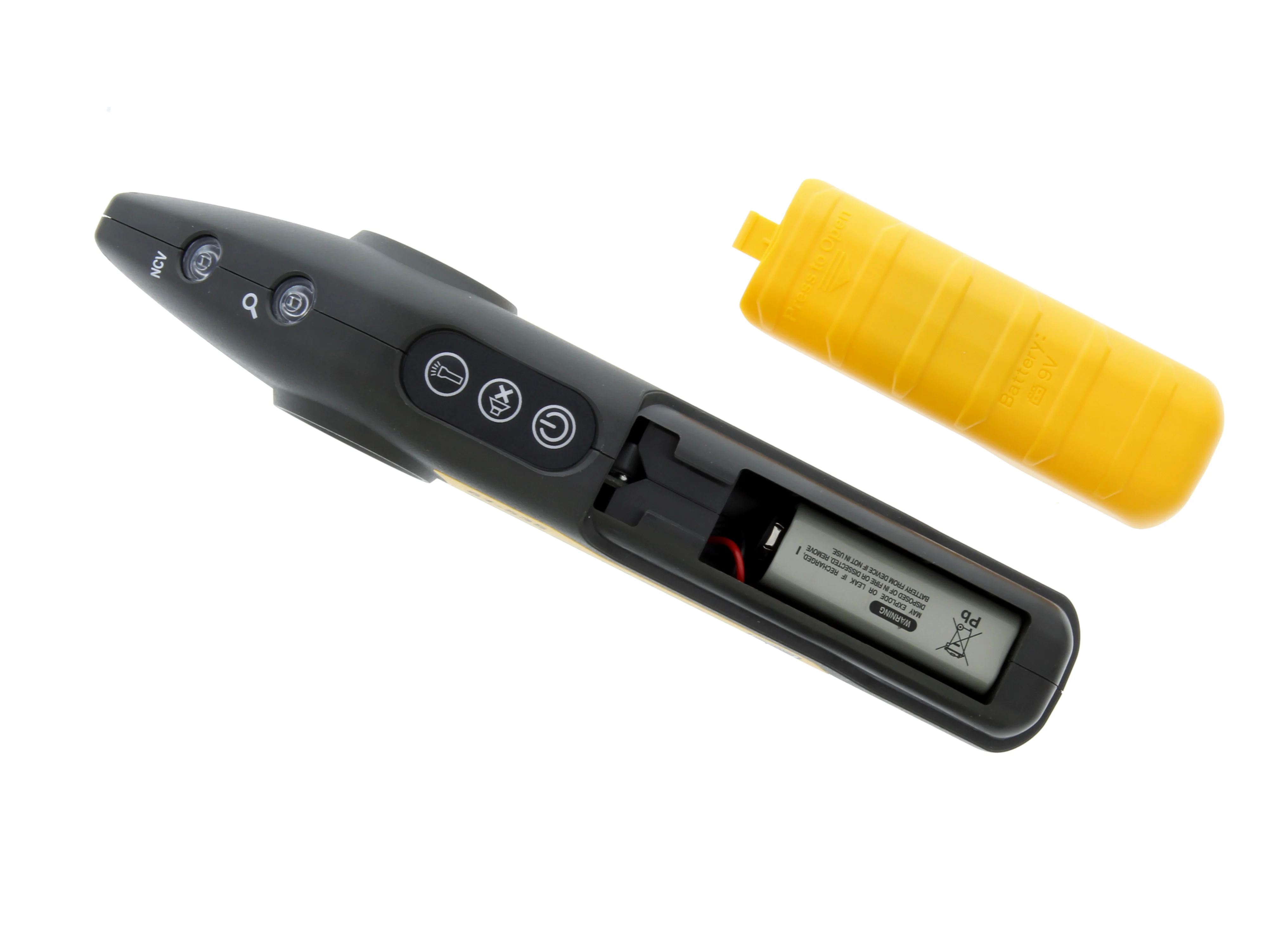

Battery Type: 9V
CAT Rating: CATII 150V
Correct Wiring Fault: Yes
Flashlight: Yes
Frequency: No
GFCI Trip Test: Yes
GFCI Trip Test Indicator: Yes
Impedance: No
Low Battery Indicator: Yes
NCV: Yes
Neutral Ground Voltage: No
Polarity Indicator: Yes
Power Consumption: 1.5W max. @ 120V AC
Supply Frequency: 60HZ
Visual Indicator: Yes
Warranty: 2-Year
