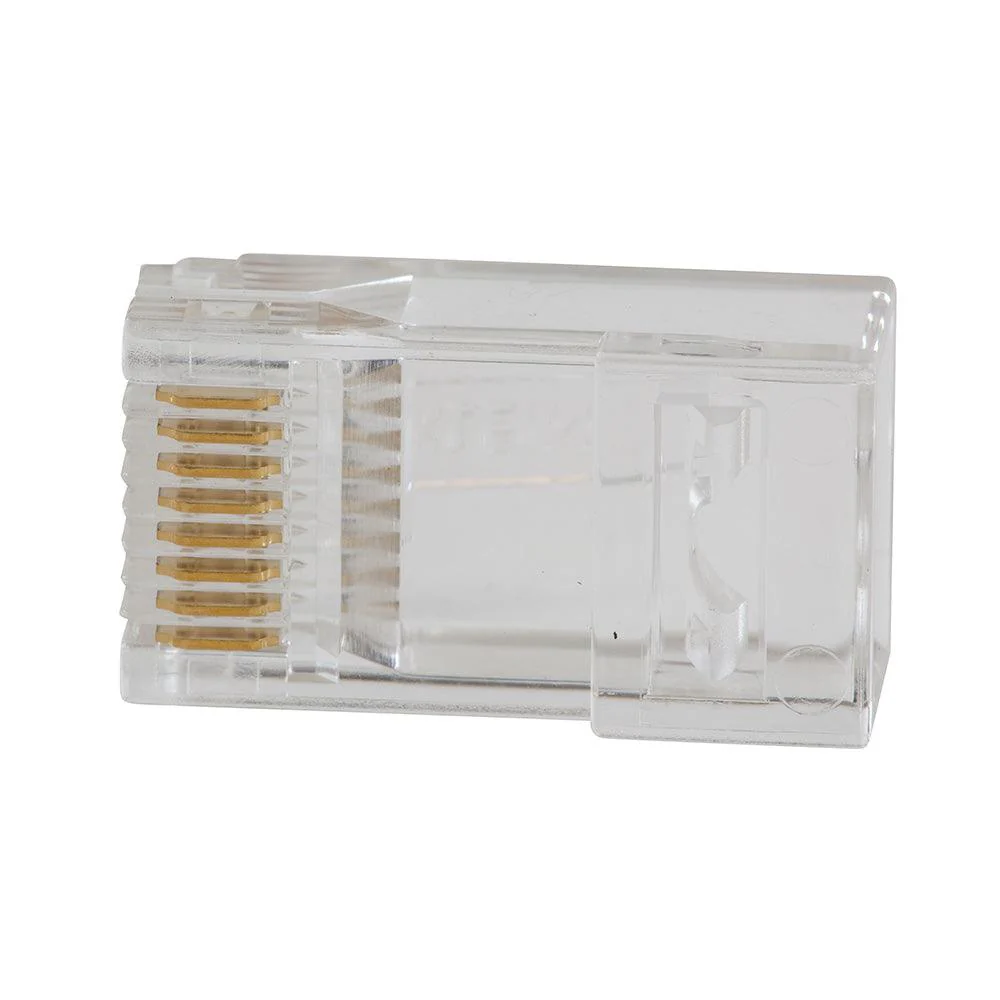

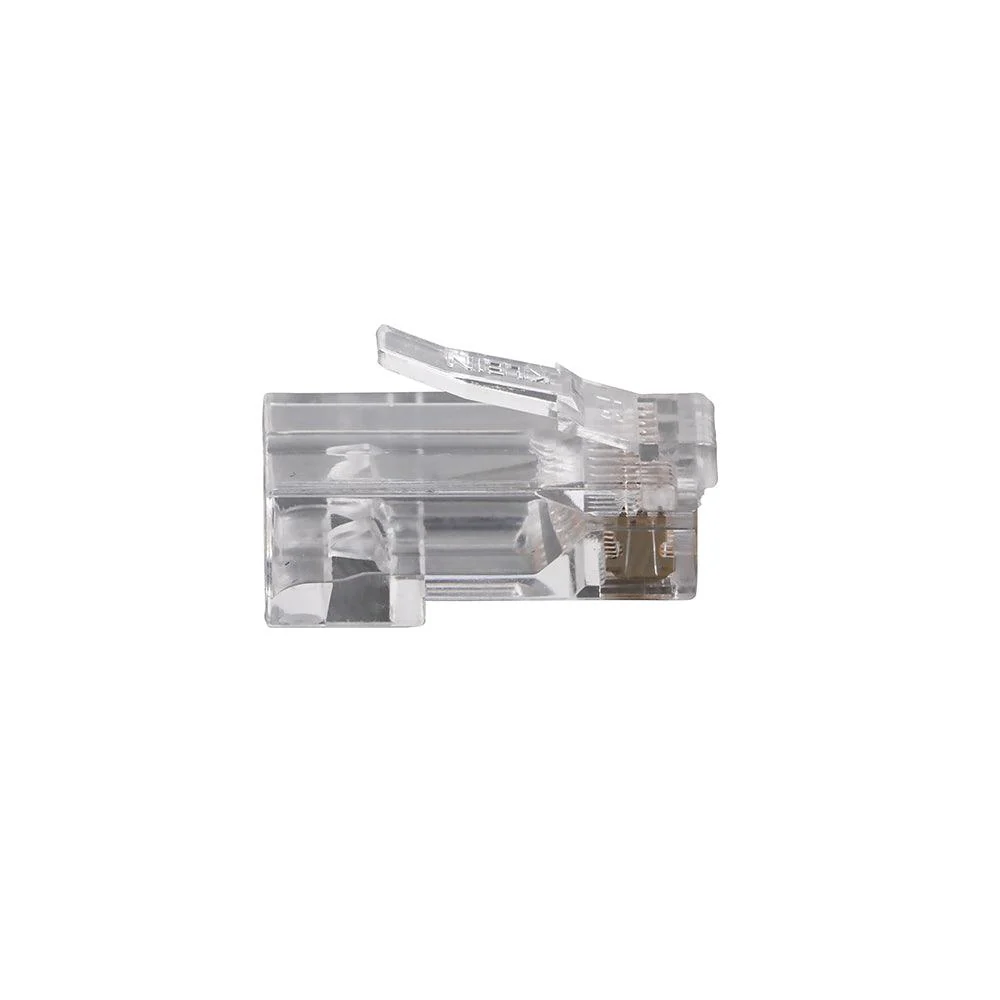

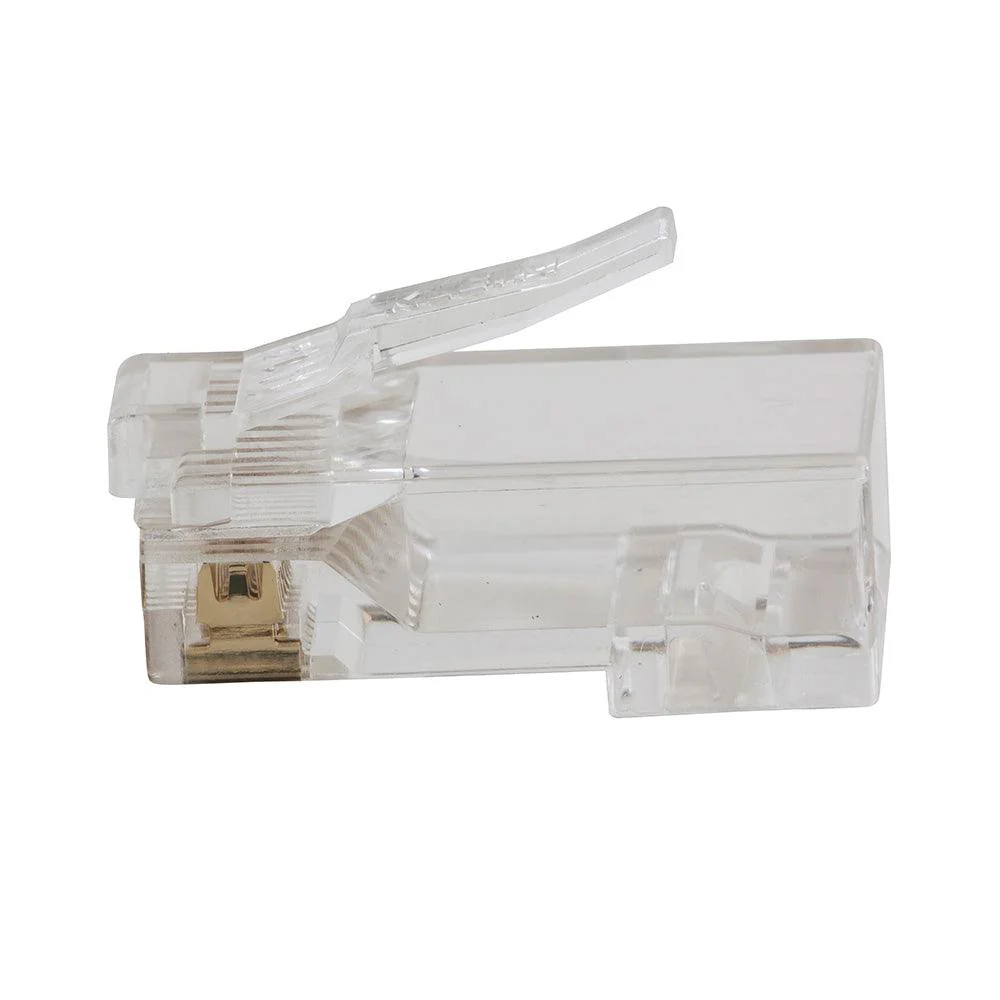

Klein Tools Pass-Thru Modular Data Plugs, RJ45-CAT5E, 10 Pack, Model VDV826-728

Description

Exclusive Klein-designed Pass-Thru modular plugs for fast, reliable connector installations for data applications. Saves time, trims flush to end face when used with Klein Tools Pass-Thru Modular Crimper VDV226-110, and eliminates wasted materials.

Benefits

• Klein exclusive Pass-Thru™ Connectors provide fast, reliable connector installations for data applications

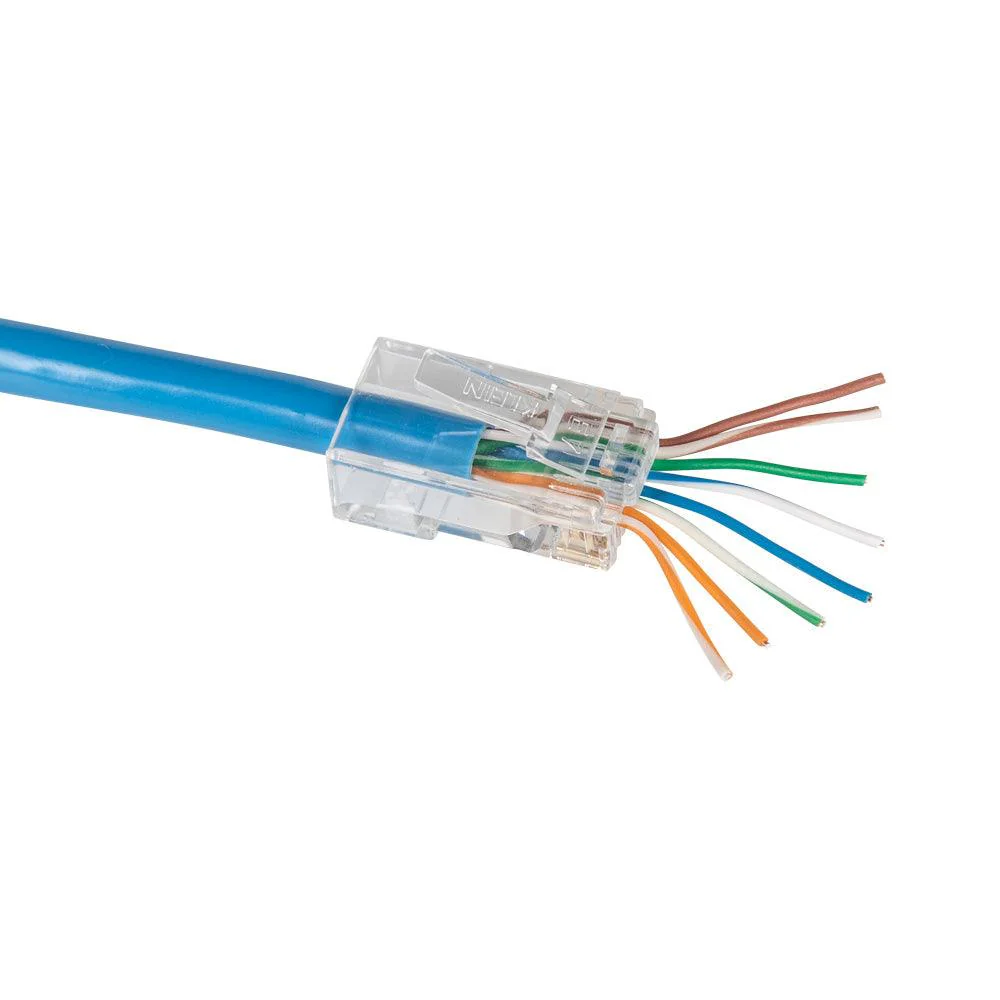

• CAT5e Cable easily passes through connector to visually ensure that wires are in the correct order for consistent and secure terminations
• 50 µ-inch gold plating on all contact surfaces
• Category 5e performance per EIA/TIA B.2. FCC compliant, UL rated, RoHS compliant
• For use with Klein Tools Pass-Thru™ Modular Crimper VDV226-110
• 10-Pack
• 8 position, 8 contact Pass-Through style data plug for solid or stranded cable
• Max diameter for CAT5E Pass-Thru™ Connectors is 0.04'' (1.01 mm)

Technical Information

Type: Modular
Application: Voice and Data
Special Features: Pass-Thru Technology
Overall Length: 0.875'' (2.2 cm)
Overall Height: 0.453'' (1.2 cm)
Overall Width: 0.094'' (0.2 cm)
Material: PVC Plastic; Gold Plated Contacts
Connector Type: RJ45
Cable Type: CAT5e
Position & Contacts: 8P 8C
Connector Color: Clear
Solid Conductor Wire: Yes
Stranded Conductor Wire: Yes
Package Quantity: 10
Weight: 1 oz. (0.03 kg)
